JS230L
Product Details
JS230L Product Details:

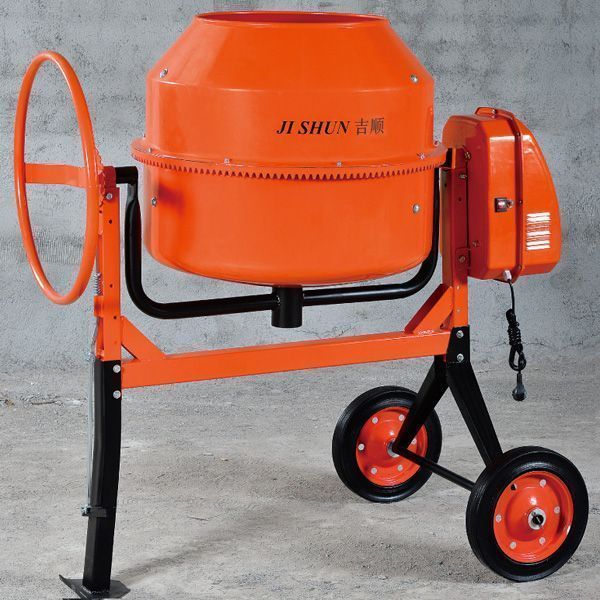

Portable Concrete Mixer self falling type double cone reversal discharging mixer, mixing tube by the ring gear drive work is to stir" reverse the material , mixing plastic and semidry — concrete ,suitable for generalconstruction sites,roads ,bridges and various concrete component factory. Portable Concrete Mixer is based on GB/T9142 - 2000 " technical conditions" the concrete mixer design and manufacture reasonable structure, and high productivity,good quality stirring appearance, convenient movement and the like, is a kind of more advanced models. Asocan stand and batching unit stirring synthesis of simple type". The" remaining" models" for mobile.
Technical Parameters
Model Drum Capacity Drum Diameter Wheels Voltage (V)
JS-230 8.1CF/230L 28" 13"x3" 110V/220V/230V/240V
Motor Power Motor Speed Carton Size GW/NW 20''/40''/40''H
1000W  2800mp 83x77x51cm 81/76kg 84pcs/182pcs/210PCS
